L6206D013TR Half Bridge (4) Driver DC Motors, Stepper Motors, Voltage Regulators BCDMOS 24-SO

Features:

●Operating supply voltage from 8 to 52 V

●5.6 A output peak current (2.8 A DC)

●Operating frequency up to 100 KHz

●Programmable high-side overcurrent detection and protection

●Diagnostic output

●Paralleled operation

●Cross conduction protection

Description:

The L6206 device is a DMOS dual full bridge designed for motor control applications, realized in BCD technology,

which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. Available in the

PowerSO36 and SO24 (20 + 2 + 2) packages, the L6206 device features thermal shutdown and a non-dissipative

overcurrent detection on the highside power MOSFETs plus a diagnostic output that can be easily used to implement

the overcurrent protection.

Quick Detail:

Product Attributes:

Additional Resources:

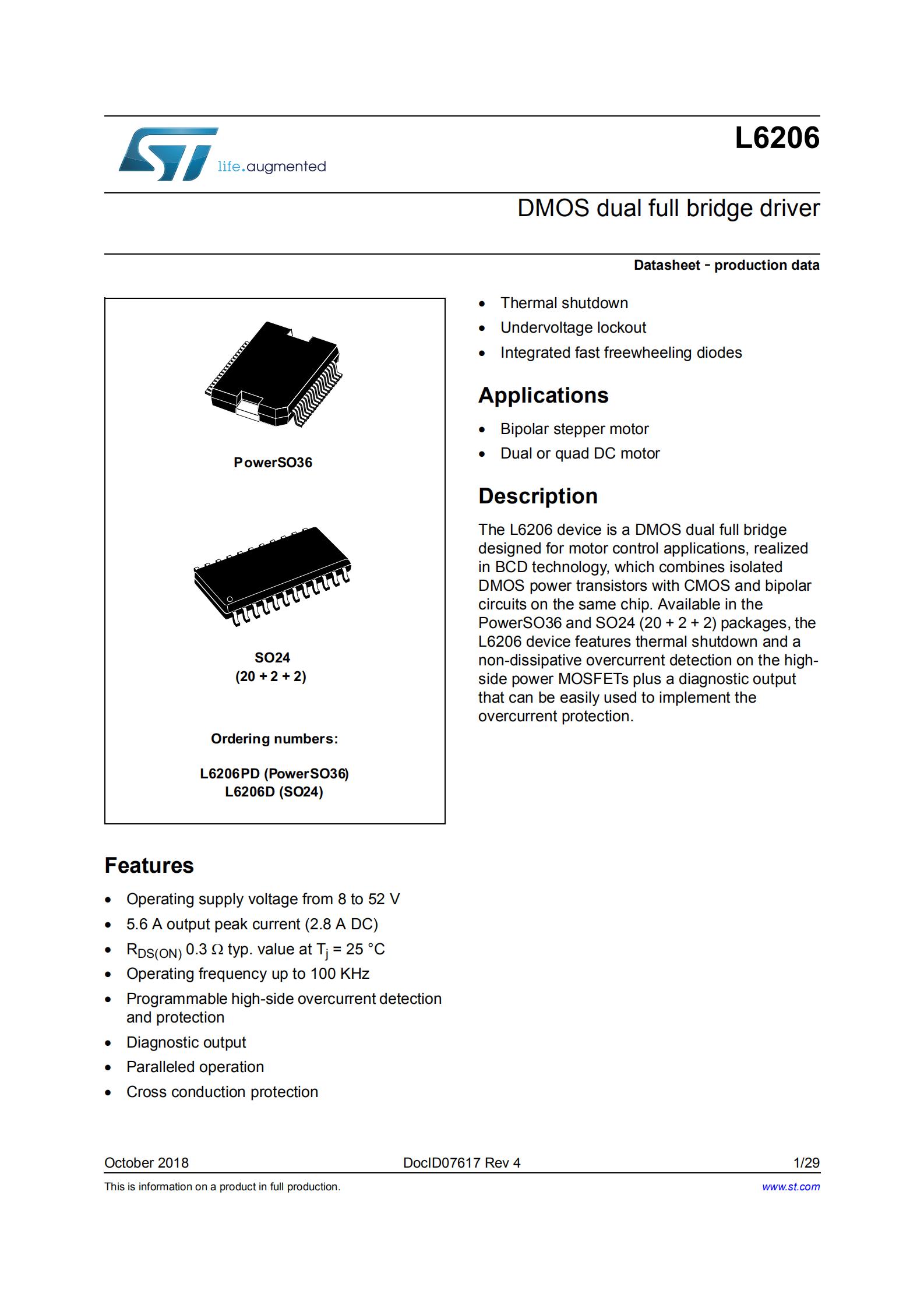

Data Picture:https://www.st.com/content/ccc/resource/technical/document/datasheet/6e/e7/d6/58/65/53/48/2a/CD00002346.pdf/files/CD00002346.pdf/jcr:content/translations/en.CD00002346.pdf
