    TC7S04F TE85L F Inverter IC 1 Channel Switch IC Chip Digital Regulator SMV

    TC7S04F(TE85L,F) Inverter IC 1 Channel SMV
    Datasheet:TC7S04F(TE85L,F)
    CategoryGates and Inverters
    MfrToshiba Semiconductor and Storage
    SeriesTC7S
    Product StatusActive
    Logic TypeInverter
    Voltage - Supply2V ~ 6V
    Current - Quiescent (Max)1 µA
    Current - Output High, Low2.6mA, 2.6mA
    Input Logic Level - Low0.5V ~ 1.8V
    Input Logic Level - High1.5V ~ 4.2V
    Max Propagation Delay @ V, Max CL17ns @ 6V, 50pF
    Operating Temperature-40°C ~ 85°C
    Mounting TypeSurface Mount
    Supplier Device PackageSMV
    Package / CaseSC-74A, SOT-753
    Base Product Number7S08
    The TC7S04 is a high speed C2 MOS Inverter fabricated with silicon gate C2 MOS technology.
    It achieves high speed operation similar to equivalent LSTTL while maintaining the C2 MOS low power dissipation.
    The internal circuit is composed of 3 stages including buffer output, which enables high noise immunity and stable output.
    The input is equipped with protection circuits against static discharge or transient excess voltage.
    Output currents are 1/2 compared to TC74HC series models
    Additional Resources:
    ATTRIBUTEDESCRIPTION
    Other NamesTC7S04F(TE85L,F)
    TC7S04FLFDKR
    TC7S04F(T5LFT)CT
    TC7S04F(T5LFT)DKR-ND
    TC7S04FT5LFT
    TC7S04FTFTR
    TC7S04FTCT-NDR
    TC7S04F(T5LFT)TR
    TC7S04F(TE85LF)TR-ND
    TC7S04F(T5LFT)CT-ND
    TC7S04FTTR-NDR
    TC7S04F(T5LFT)TR-ND
    TC7S04F,LF(T
    TC7S04F(TE85LF)CT
    TC7S04F(TE85LF)CT-ND
    TC7S04F(TE85LF)DKR-ND
    TC7S04F(TE85LF)TR
    TC7S04FTFDKR
    TC7S04FTFDKR-ND
    TC7S04F,LF(B
    TC7S04FLFTR
    TC7S04F(T5L,F,T)
    TC7S04F (T5L,F,T)
    TC7S04F(T5LFT)DKR
    TC7S04FTFCT
    TC7S04FTFCT-ND
    TC7S04F(TE85LF)DKR
    TC7S04FTFTR-ND
    TC7S04FLFCT
    Standard Package3000
    Features
    • High speed: tpd = 7 ns (typ.) at VCC = 5 V
    • Low power dissipation: ICC = 1 μA (max) at Ta = 25°C
    • High noise immunity: VNIH = VNIL = 28% VCC (min)
    • Output drive capability: 5 LSTTL loads
    • Symmetrical output impedance: |IOH| = IOL = 2 mA (min)
    • Balanced propagation delays: tpLH ∼− tpHL
    • Wide operating voltage range: VCC (opr) = 2 to 6 V

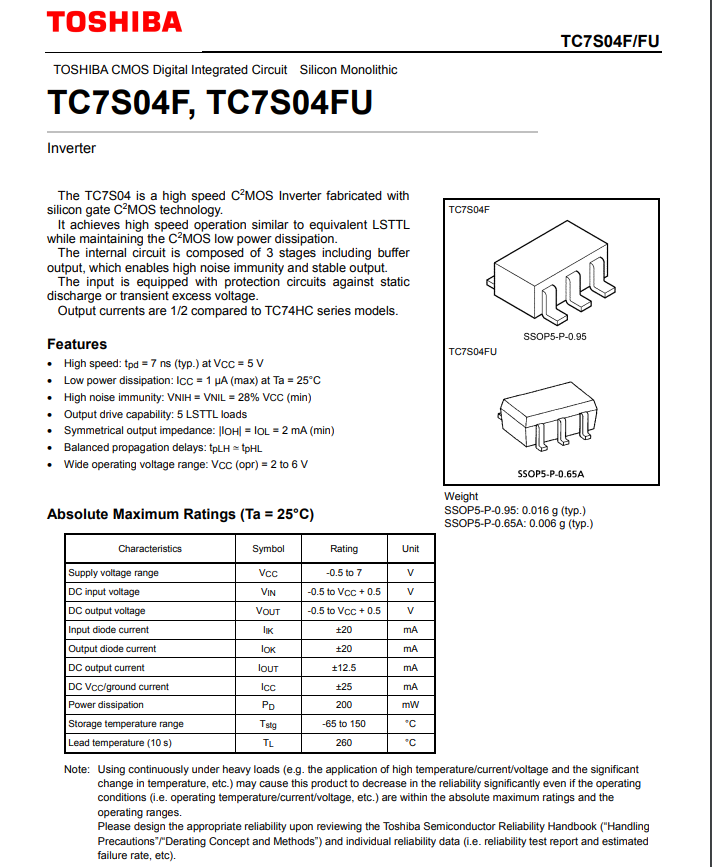

    Data Picture:
