SCS212AJTLL Discrete ROHM Semiconductor Diode 650 V 12A Surface Mount TO-263AB

Shenzhen Zhaocun Electronics Co., Ltd.
Contact Now
    Buy cheap SCS212AJTLL Discrete ROHM Semiconductor Diode 650 V 12A Surface Mount TO-263AB from wholesalers

    Buy cheap SCS212AJTLL Discrete ROHM Semiconductor Diode 650 V 12A Surface Mount TO-263AB from wholesalers
    • Buy cheap SCS212AJTLL Discrete ROHM Semiconductor Diode 650 V 12A Surface Mount TO-263AB from wholesalers

    SCS212AJTLL Discrete ROHM Semiconductor Diode 650 V 12A Surface Mount TO-263AB

    Ask Lasest Price
    Brand Name : Rohm Semiconductor
    Model Number : SCS212AJTLL
    Certification : RoHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 3K PCS
    Delivery Time : 2-3 DAYS
    • Product Details
    • Company Profile

    SCS212AJTLL Discrete ROHM Semiconductor Diode 650 V 12A Surface Mount TO-263AB

    SCS212AJTLL Diode 650 V 12A Surface Mount TO-263AB​

    Datasheet:SCS212AJTLL

    CategorySingle Diodes
    MfrRohm Semiconductor
    Product StatusActive
    TechnologySiC (Silicon Carbide) Schottky
    Voltage - DC Reverse (Vr) (Max)650 V
    Current - Average Rectified (Io)12A
    Voltage - Forward (Vf) (Max) @ If1.55 V @ 12 A
    SpeedNo Recovery Time > 500mA (Io)
    Reverse Recovery Time (trr)0 ns
    Current - Reverse Leakage @ Vr240 µA @ 600 V
    Mounting TypeSurface Mount

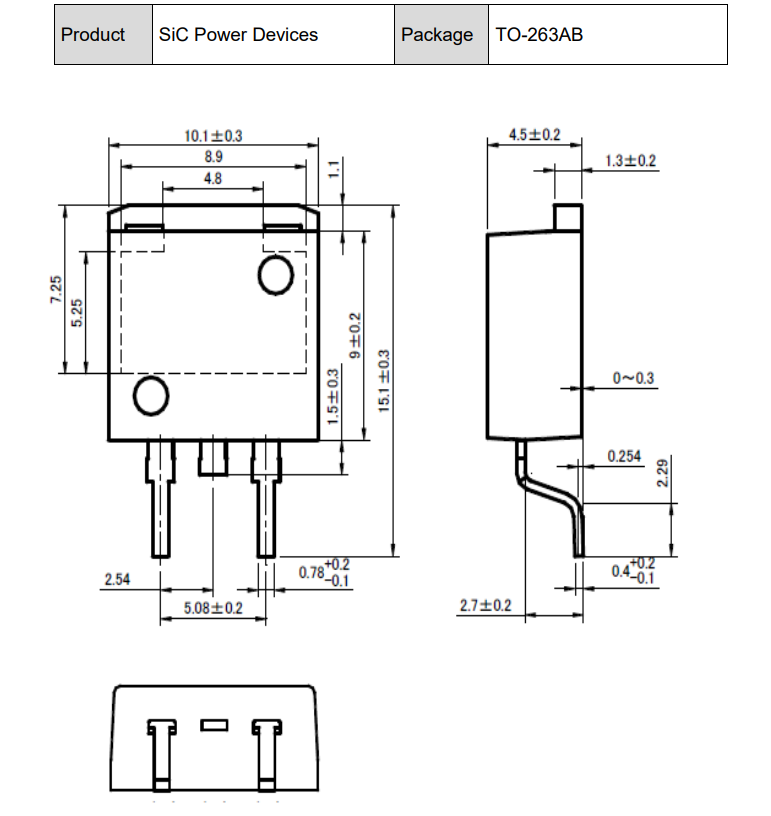

    Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
    Supplier Device PackageTO-263AB
    Operating Temperature - Junction175°C (Max)
    Base Product NumberSCS212

    FEATURES:

    ・Shorter recovery time
    ・Reduced temperature dependence
    ・High-speed switching possible


    Applications

    ・PFC Boost Topology

    ・Secondary Side Rectification

    ・Data Center

    ・PV Power Conditioners


    DataPicture:https://fscdn.rohm.com/en/products/databook/datasheet/discrete/sic/sbd/scs212aj-e.pdf
