    MP2015AGJE-Z Linear Voltage Regulator IC Positive Adjustable 1 Output 150mA TSOT-23-4

    Ask Lasest Price
    Brand Name : MPS
    Model Number : MP2015AGJE-Z
    Certification : RoHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 6K PCS
    Delivery Time : 2-3 DAYS
    • Product Details
    • Company Profile

    MP2015AGJE-Z Linear Voltage Regulator IC Positive Adjustable 1 Output 150mA TSOT-23-4

    MP2015AGJE-Z Linear Voltage Regulator IC Positive Adjustable 1 Output 150mA TSOT-23-4


    Datasheet:MP2015AGJE-Z

    CategoryVoltage Regulators - Linear
    MfrMonolithic Power Systems Inc.
    Product StatusActive
    Output ConfigurationPositive
    Output TypeAdjustable
    Number of Regulators1
    Voltage - Input (Max)24V
    Voltage - Output (Min/Fixed)1.215V
    Voltage - Output (Max)15V
    Voltage Dropout (Max)1.1V @ 150mA
    Current - Output150mA
    Current - Quiescent (Iq)35 µA
    Current - Supply (Max)50 µA
    PSRR55dB (100kHz)
    Control FeaturesEnable
    Operating Temperature-40°C ~ 125°C (TJ)
    Mounting TypeSurface Mount
    Package / CaseSOT-23-4 Thin, TSOT-23-4
    Supplier Device PackageTSOT-23-4
    Base Product NumberMP2015

    Additional Resources:

    ATTRIBUTEDESCRIPTION
    Standard Package3000

    DESCRIPTION

    The MP2015A is a low power linear regulator that supplies power to systems with high voltage batteries. It includes a wide 2.5V to 24V input range, low dropout voltage and low quiescent supply current. The low quiescent current and low dropout voltage allow operations at extremely low power levels. Therefore, the MP2015A is an ideal for the low power microcontrollers and the battery-powered equipments.


    The MP2015A provides wide variety of fixed output voltage options (if request): 1.8V, 1.9V, 2.3V, 2.5V, 3.0V, 3.3V, 3.45V, 5.0V; and also provides the output adjustable option (from 1.215V to 15V).


    The regulator output current is internally limited and the device is protected against over-load and over-temperature conditions.


    The MP2015A also includes thermal shutdown and current limiting fault protection, and is available in QFN-6 (2mmx2mm), QFN 8(3mmx3mm), and TSOT23-4 packages.


    FEATURES

     2.5V to 24V Input Range

     3.3µA Quiescent Supply Current

     Stable With low-value output ceramic capacitor (> 0.47μF)

     150mA specified current for QFN-6 and QFN-8 Packages

     100mA specified current for TSOT23-4 Packages

     700mV Dropout at 150mA Load

     Available in Fixed 3.3V Output and Adjustable Output (1.215V to 15V) versions

     Output ±2% Accuracy for QFN-6 and QFN-8 Packages

     Output ±4% Accuracy TSOT23-4 Packages

     Specified current limit

     Thermal Shutdown and Short-Circuit Protection

     Available in TSOT23-4, QFN-6 (2mmx2mm), or QFN-8 (3mmx3mm) Packages


    APPLICATIONS

     Portable/Battery-Powered Equipment

     Ultra low power Microcontrollers

     Cellular Handsets

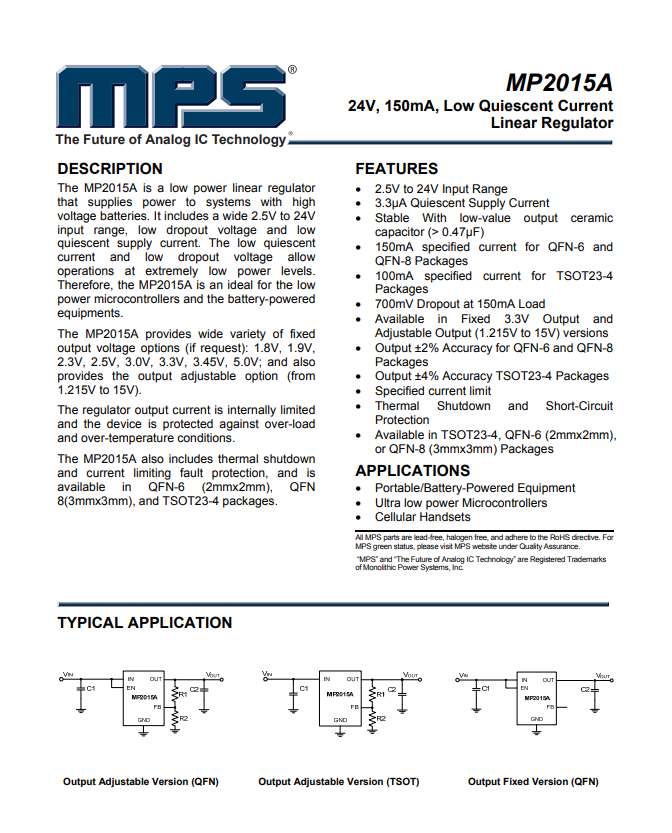

    DataPicture:https://www.monolithicpower.com/en/documentview/productdocument/index/version/2/document_type/Datasheet/lang/EN/sku/MP2015A/document_id/1263/
