    AD8422BRMZ-R7 Instrumentation Amplifier IC Smd 1 Circuit Rail-To-Rail 8-MSOP

    Ask Lasest Price
    Brand Name : ADI
    Model Number : AD8422BRMZ-R7
    Certification : RoHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 10K PCS
    Delivery Time : 2-3 DAYS
    • Product Details
    • Company Profile

    AD8422BRMZ-R7 Instrumentation Amplifier IC Smd 1 Circuit Rail-To-Rail 8-MSOP

    AD8422BRMZ-R7 Instrumentation Amplifier IC 1 Circuit Rail-to-Rail 8-MSOP


    Description:

    The AD8422 is a high precision, low power, low noise, rail-to-rail instrumentation amplifier that delivers

    the best performance per unit microampere in the industry. The AD8422 processes signals with ultralow

    distortion performance that is load independent over its full output range.


    Quick Detail:

    Manufacturer
    Analog Devices Inc.
    Manufacturer Product Number
    AD8422BRMZ-R7
    Description
    IC INST AMP 1 CIRCUIT 8MSOP
    Detailed Description
    Instrumentation Amplifier 1 Circuit Rail-to-Rail 8-MSOP

    Product Attributes:

    TYPE
    DESCRIPTION
    Category
    Instrumentation, OP Amps, Buffer Amps
    Mfr
    Analog Devices Inc.
    Product Status
    Active
    Amplifier Type
    Instrumentation
    Number of Circuits
    1
    Output Type
    Rail-to-Rail
    Slew Rate
    0.8V/µs
    -3db Bandwidth
    2.2 MHz
    Current - Input Bias
    200 pA
    Voltage - Input Offset
    50 µV
    Current - Supply
    300µA
    Current - Output / Channel
    20 mA
    Voltage - Supply Span (Min)
    4.6 V
    Voltage - Supply Span (Max)
    36 V
    Operating Temperature
    -40°C ~ 85°C
    Mounting Type
    Surface Mount
    Package / Case
    8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
    Supplier Device Package
    8-MSOP
    Base Product Number
    AD8422

    Additional Resources:

    ATTRIBUTEDESCRIPTION
    Other Names
    AD8422BRMZ-R7-ND
    AD8422BRMZ-R7DKR
    505-AD8422BRMZ-R7DKR
    AD8422BRMZ-R7CT-ND
    505-AD8422BRMZ-R7TR
    AD8422BRMZ-R7TR-ND
    AD8422BRMZ-R7CT
    AD8422BRMZ-R7TR
    505-AD8422BRMZ-R7CT
    AD8422BRMZ-R7DKR-ND
    Standard Package1000

    FEATURES

    ► Low power: 368 µA maximum quiescent current

    ► Rail-to-rail output

    ► Low noise and distortion

    ► 8 nV/√Hz maximum input voltage noise at 1 kHz

    ► 0.15 µV p-p RTI noise (G = 100)

    ► 0.5 ppm nonlinearity with 2 kΩ load (G = 1)

    ► Excellent ac specifications

    ► 80 dB minimum CMRR at 10 kHz (G = 1)

    ► 2.2 MHz bandwidth (G = 1)

    ► High precision dc performance (AD8422BRZ)

    ► 150 dB minimum CMRR (G = 1000)

    ► 0.04% maximum gain error (G = 1000)

    ► 0.3 µV/°C maximum input offset drift

    ► 0.5 nA maximum input bias current

    ► Wide supply range

    ► 4.6 V to 36 V single supply

    ► ±2.3 V to ±18 V dual supply

    ► Input overvoltage protection: 40 V from opposite supply

    ► Gain range: 1 to 1000

    ► Available in 8-lead LFCSP, 8-lead MSOP, and 8-lead SOIC_N

    APPLICATIONS

    ► Medical instrumentation

    ► Industrial process controls

    ► Strain gages

    ► Transducer interfaces

    ► Precision data acquisition systems

    ► Channel-isolated systems

    ► Portable instrumentation

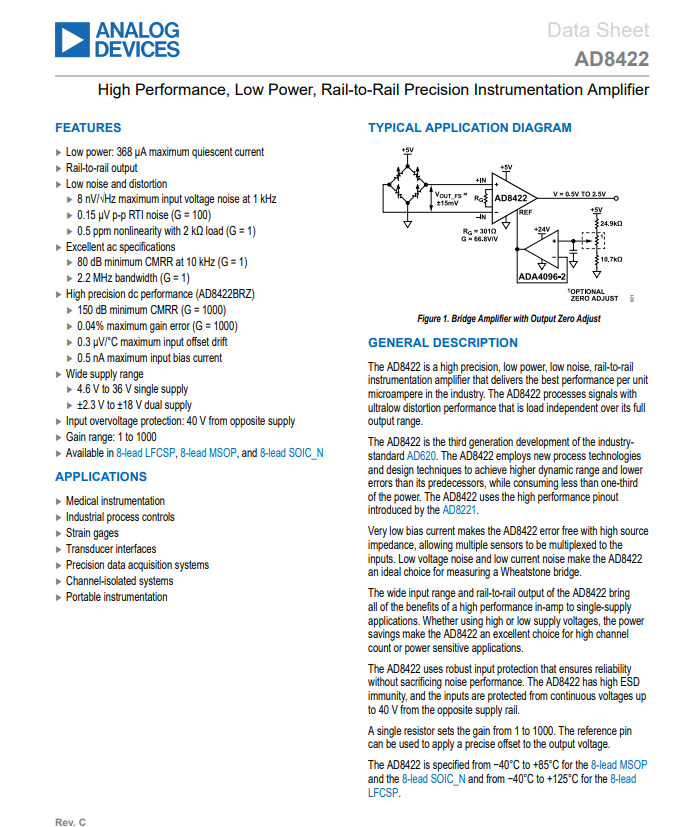

    Data Picture:
