AT24CM02-SSHD-B EEPROM Memory IC 2Mbit I²C 1 MHz 450 Ns 8-SOIC

Description:

The AT24CM02 provides 2,097,152 bits of Serial Electrically Erasable and Programmable Read-Only

Memory (EEPROM) organized as 262,144 words of 8 bits each. The device's cascading feature allows

up to four devices to share a common two-wire bus. This device is optimized for use in many industrial and

commercial applications where low-power and low-voltage operations are essential. The device is available

in space-saving 8-lead SOIC and 8-ball WLCSP packages. All packages operate from 1.7V to 5.5V.

Quick Detail:

Product Attributes:

Additional Resources:

Features

• Low-Voltage and Standard-Voltage Operation:

– VCC = 1.7V to 5.5V

– VCC = 2.5V to 5.5V

• Internally Organized as 262,144 x 8 (2‑Mbit)

• Industrial Temperature Range: -40°C to +85°C

• I2C-Compatible (Two-Wire) Serial Interface:

– 100 kHz Standard Mode, 1.7V to 5.5V

– 400 kHz Fast Mode, 1.7V to 5.5V

– 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V

• Schmitt Triggers, Filtered Inputs for Noise Suppression

• Bidirectional Data Transfer Protocol

• Write-Protect Pin for Full Array Hardware Data Protection

• Ultra Low Active Current (3 mA maximum) and Standby Current (3 µA maximum)

• 256-byte Page Write Mode:

– Byte write and partial page writes allowed

• Random and Sequential Read Modes

• Self-Timed Write Cycle:

– All write operations complete within 10 ms maximum

• Built-in Error Detection and Correction

• High Reliability:

– Endurance: 1,000,000 write cycles

– Data retention: 100 years

• Green Package Options (Lead-free/Halide-free/RoHS compliant)

• Die Sale Options: Wafer Form and Bumped Wafers

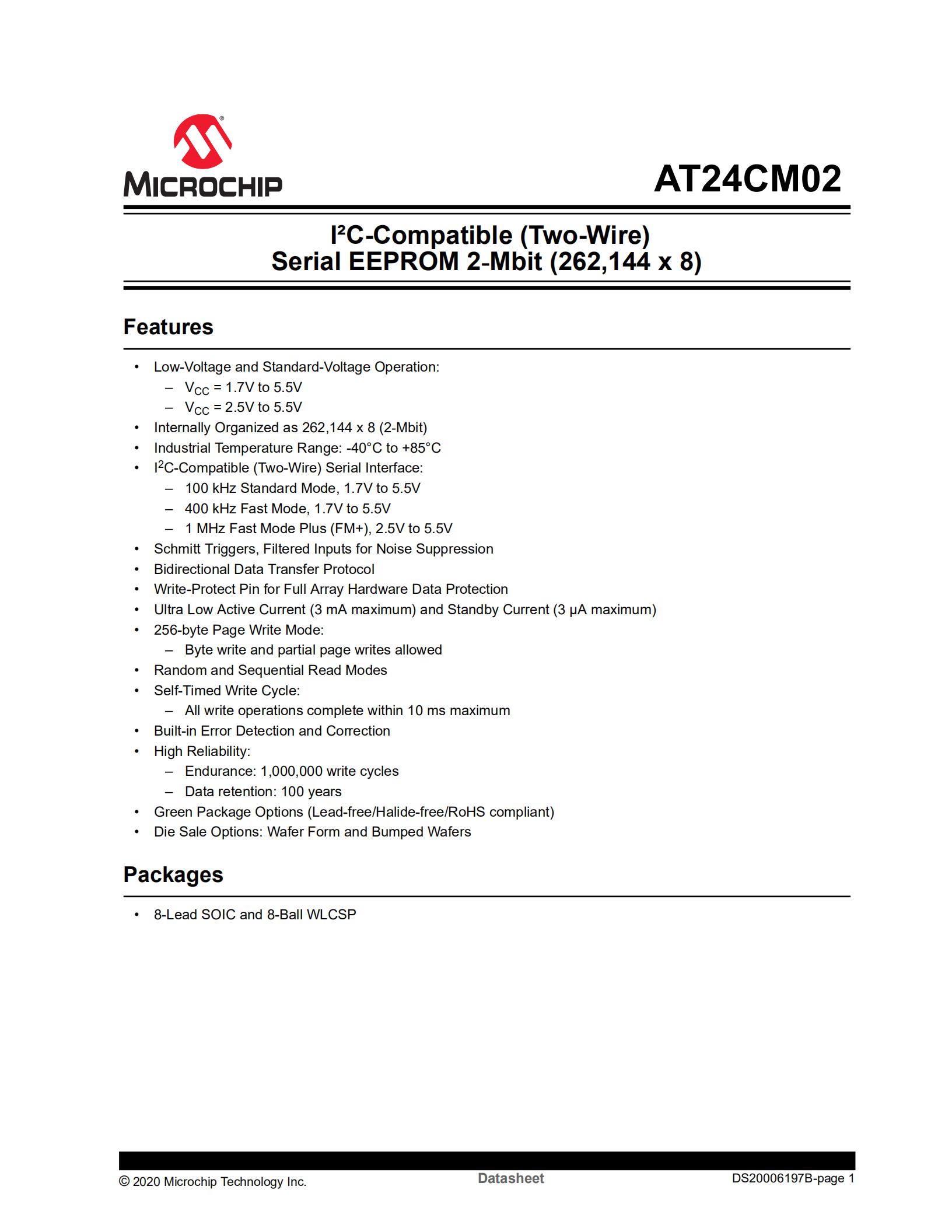

Data Picture:
