    LM46002PWPEVM Development Boards Kits IC Development Tools Evaluation Board

    Datasheet:LM46002PWPEVM.pdf


    Power Management IC Development Tools Evaluation Module

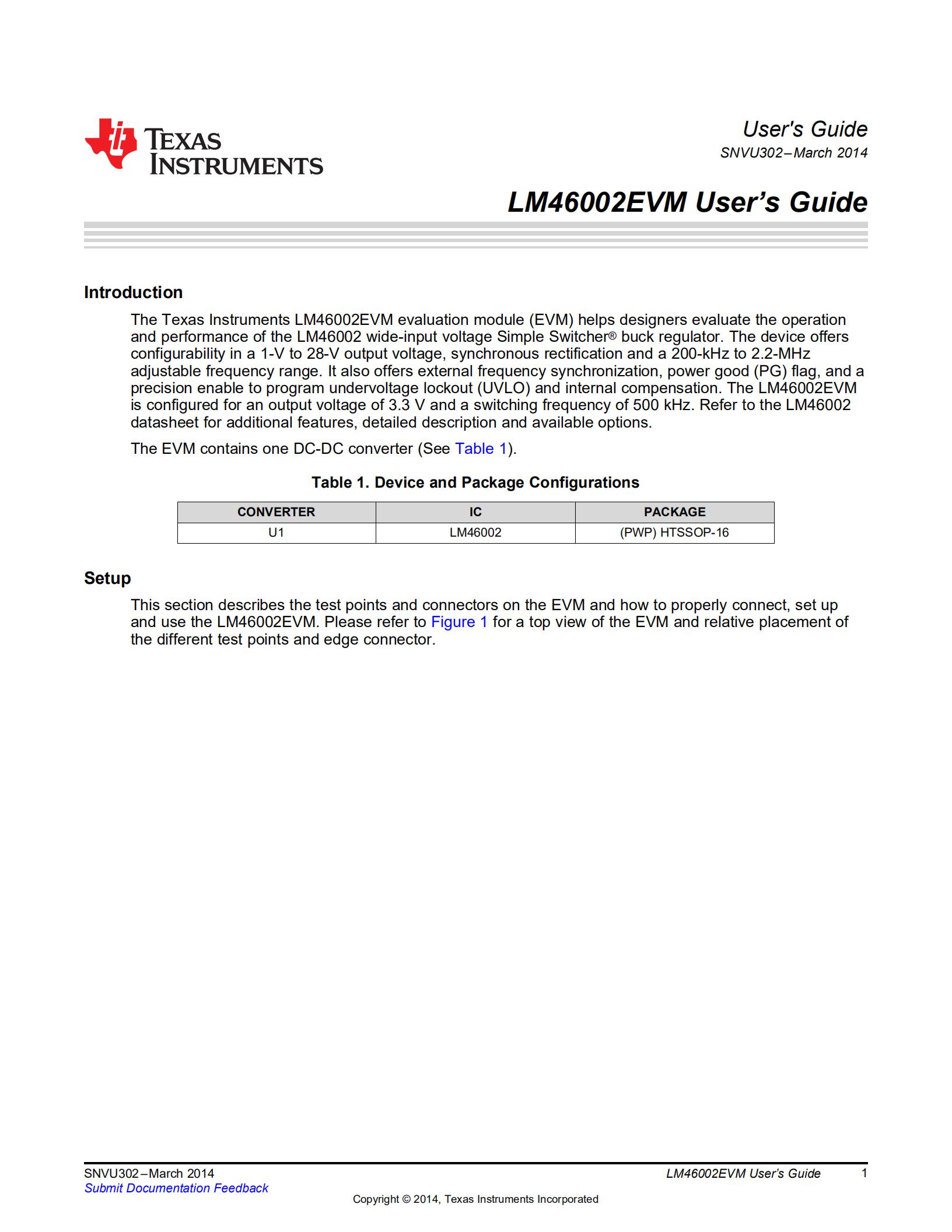

    Introduction:

    The Texas Instruments LM46002EVM evaluation module (EVM) helps designers evaluate the operation
    and performance of the LM46002 wide-input voltage Simple Switcher® buck regulator. The device offers
    configurability in a 1-V to 28-V output voltage, synchronous rectification and a 200-kHz to 2.2-MHz
    adjustable frequency range. It also offers external frequency synchronization, power good (PG) flag, and a
    precision enable to program undervoltage lockout (UVLO) and internal compensation. The LM46002EVM
    is configured for an output voltage of 3.3 V and a switching frequency of 500 kHz. Refer to the LM46002
    datasheet for additional features, detailed description and available options.
    Description:
    LM4600xPWPEVM Evaluation Modules
    Texas Instruments LM4600xPWPEVM Evaluation Modules (EVMs) are fully assembled and tested circuits
    for evaluating the LM4600xPWP devices. The Texas Instruments LM4600xPWP devices are 60V synchronous
    Simple Switcher step-down converters. Each of the evaluation modules operates from a 3.5V to 60V input and
    provides a 5V output at either 0.5A (LM46000PWEVM), 1A (LM46001PWEVM), or 2A (LM46002PWEVM).

    Quick Detail:

    Manufacturer
    Texas Instruments
    Manufacturer Product Number

    LM46002PWPEVM
    Description
    EVAL BOARD BUCK REG LM46002
    Detailed Description
    LM46002 SIMPLE SWITCHER® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board

    Product Attributes:

    TYPE
    DESCRIPTION
    Category
    Development Boards, Kits, Programmers
    Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
    Mfr
    Texas Instruments
    Series
    SIMPLE SWITCHER
    Package
    Box
    Product Status
    Active
    Main Purpose
    DC/DC, Step Down
    Outputs and Type
    1, Non-Isolated
    Voltage - Output
    3.3V
    Current - Output
    2A
    Voltage - Input
    3.5V ~ 60V
    Regulator Topology
    Buck
    Frequency - Switching
    500kHz
    Board Type
    Fully Populated
    Supplied Contents
    Board(s)
    Utilized IC / Part
    LM46002
    Base Product Number
    LM46002

    Additional Resources:

    ATTRIBUTEDESCRIPTION
    Other Names296-37859
    Standard Package1

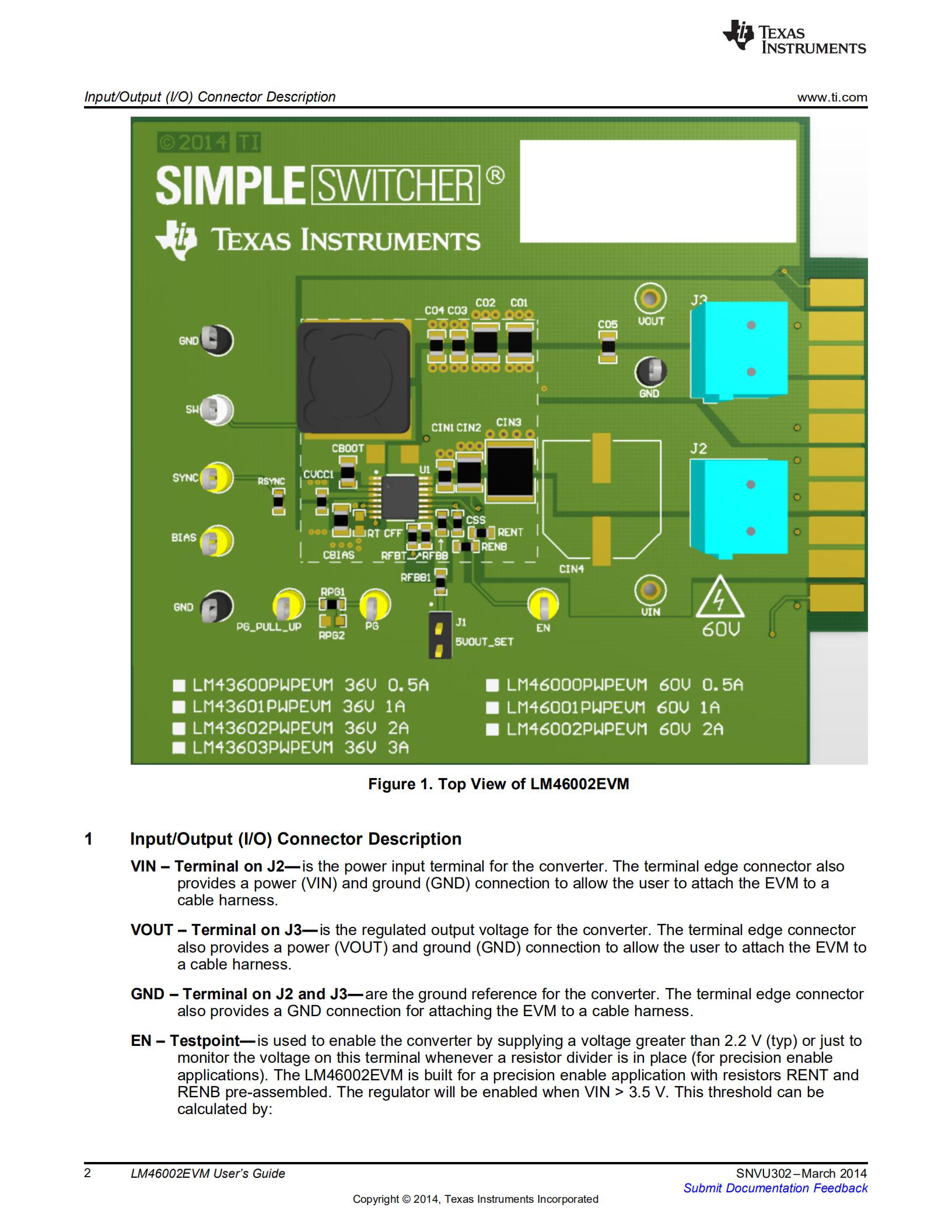

    Data Picture:
